Product Description

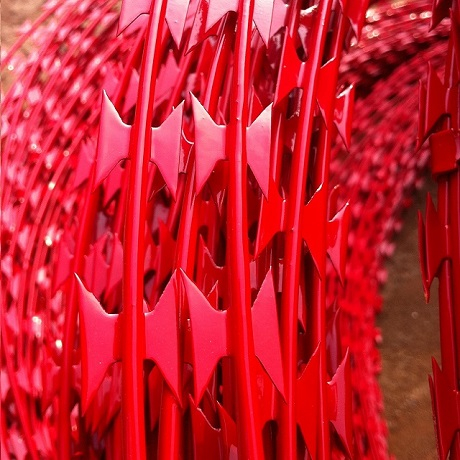

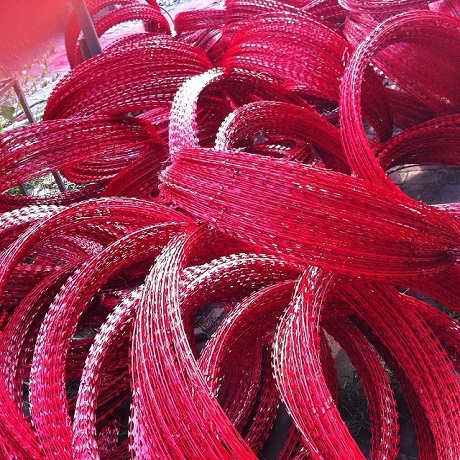

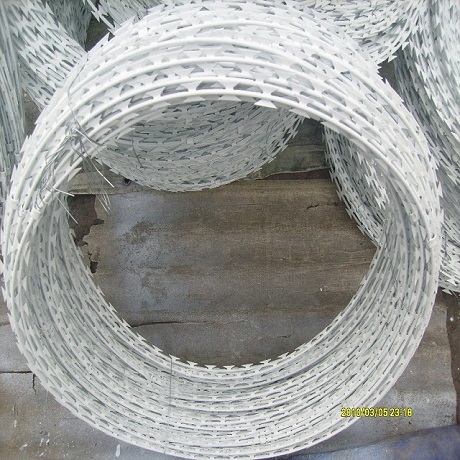

Polyester Coating Razor Wire Specification:
Reference no | Blade Style | Thickness | Wire Dia | Blade Length | Blade Width | Blade Space |
BTO-12 |
| 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-15 |
| 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
BTO-22 |
| 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-30 |
| 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
CBT-25 |
| 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
CBT-60 |
| 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 |
| 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
450mm | 33 | 7-8M | CBT-60.65 | Single coil |
500mm | 56 | 12-13M | CBT-60.65 | Single coil |
700mm | 56 | 13-14M | CBT-60.65 | Single coil |
960mm | 56 | 14-15M | CBT-60.65 | Single coil |
450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
