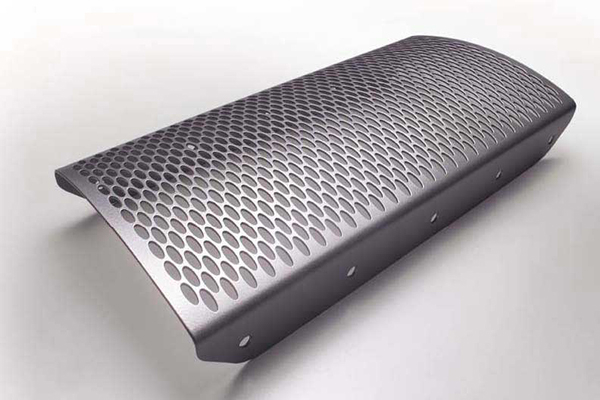

Perforated Metal Mesh

Share to:

Thickness or Gauge
Thickness of the metal sheets do not change during the perforation. Normally thickness is expressed in gauge, please see the . However, to avoid possible misunderstanding, we would suggest to express them in inches or millimeters.
Width and Length
The most common width and length are as following
1000MM X 2000MM 1220MM X 2440MM 1250MM X 2500MM
1250MM X 6000MM 1500MM X 3000MM 1500MM X 6000MM
However we can also do other sheet sizes according to customers’ requirements.

Availability:

Product Description

Product Description

Margins

Margins are the blank (un-perforated) area along the edges of the sheet. Normally the margin on the length are 20mm minimum, and margin along the width can be 0 minimum or at customers’ requests.

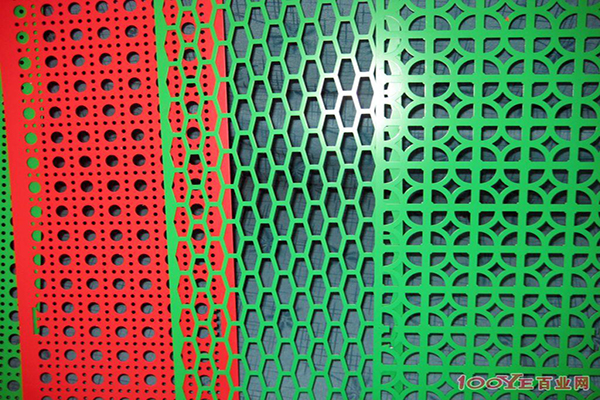

Hole arrangement

Round hole are normally arranged in 3 types:

Other hole patterns and hole arrangements can be custom made.
Round Hole, 60°, Staggered
Round Hole, 45°, Staggered
Round Hole, Straight Row

Hole size and Pitch Type	Thickness d	Gride Size		Mesh Size
Hole size and Pitch Type	Thickness d	TL	TB	L (Adjust able)	B
Small Mesh (b≤2.5)	≤1.5	12	25		≤1000
		14	25		≤1000
		12.5	26		≤1000
		13	26		≤500
		13	27		≤1000
		15	30		≤1000
Middle-size Mesh (b≤7)	≤2	14	25	≤22000	≤1000
		15	30	≤22000	≤2000
		18	30	≤22000	≤22000
	≤3	12	32	≤22000	≤22000
		23	40	≤22000	≤530
		23	50	≤22000	≤2000
		28	50	≤22000	≤2000
		30	60	≤22000	≤2000
	≤4	40	80	≤22000	≤2000
		45	80	≤22000	≤2000
		44	100	≤22000	≤2000
		50	100		≤2000
		56	100		≤2000
		52	120		≤2000
Heavy Mesh (b≤8)	≤3	28	50	≤6000	≤2500
	≤3	30	60		≤2500
	≤8	34	80		≤2500
		40	80		≤2500
		45	80		≤2500
		44	100		≤2500
		50	100		≤2500
		52	120		≤2500
		43	135		≤1000
		64	150		≤2500
		100	200		≤2500
