Product Description
EXPANDED METAL MESH INTRODUCTION:
Material: low carbon steel, stainless steel plate, aluminum plate, copper plate, nickel plate, aluminum magnesium alloy plate and other metal plate.
Weaving and characteristics: the steel plate after stamping, stretching, divided into steel plate mesh and stainless steel net, beautiful and easy, strong and durable.
Surface treatment: PVC dipping plastic (plastic spraying, plastic coated), hot dip galvanized, electric galvanized, anodic oxidation (aluminum), spray paint, etc.
According to the material classification: low carbon steel plate, aluminum plate, stainless steel plate, aluminum magnesium alloy plate, steel plate and other plate.
According to use classification: widely used in highway, railway, civil building, water conservancy construction, such as all kinds of machinery, electrical appliances, window protection and aquaculture and so on.Can be customized according to customer request processing all kinds of special specifications of products.

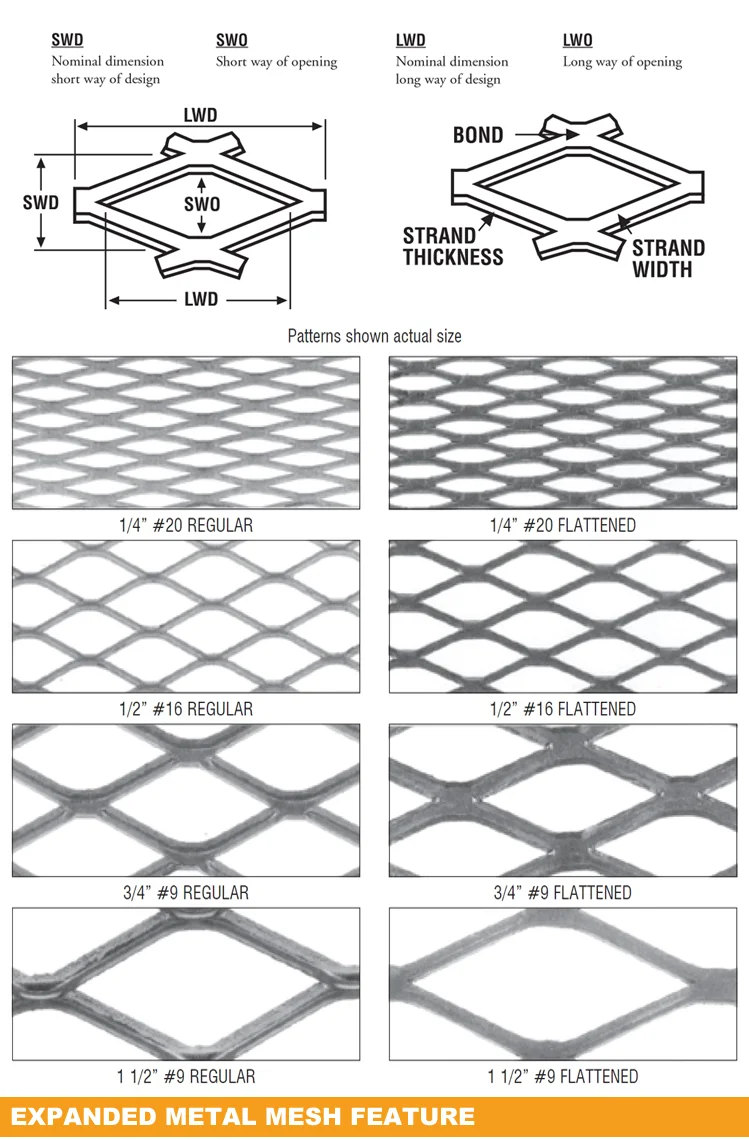

| Thickness | SWD | LWD | wire stems width | Width | Length | Weight |
| (mm) | (mm) | (mm) | (mm) | (m) | (m) | (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4 | 60 | 120 | 4 | 2 | 7.5 | 4 |
| 4 | 80 | 180 | 4 | 2 | 10 | 3 |
| 4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
