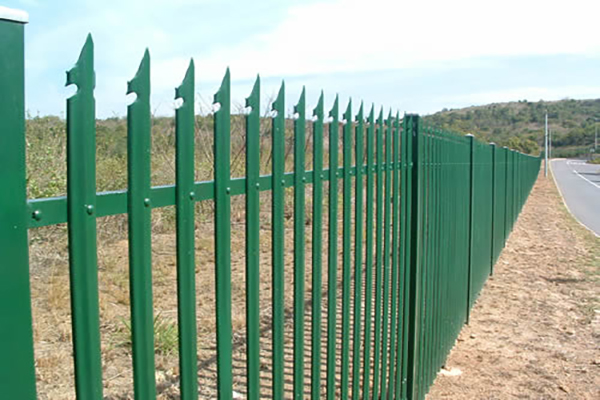

D Type Palisade Fence

Fence Panel Height: 1m-5m
Fence Width:2m-3m
D Pale Height: 1.0m-5.0m
D Pale Width: 65mm
D Thickness: 2.0mm-4mm

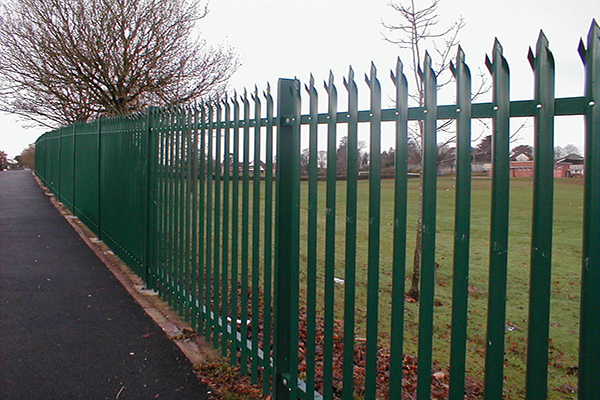

Top Point: Three Triple Point, Single Point,Round Point ETC.
Material: Hot and Cold Steel Roll Belt

Product Description

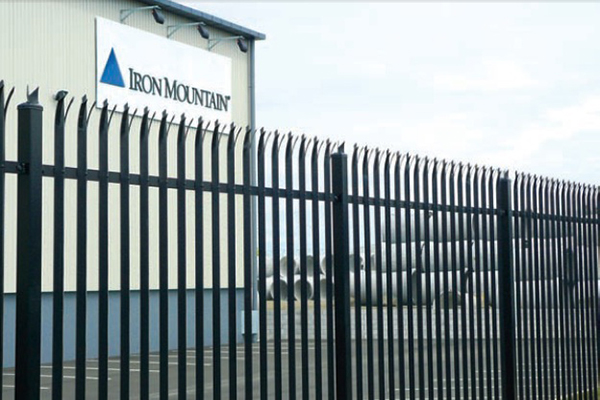

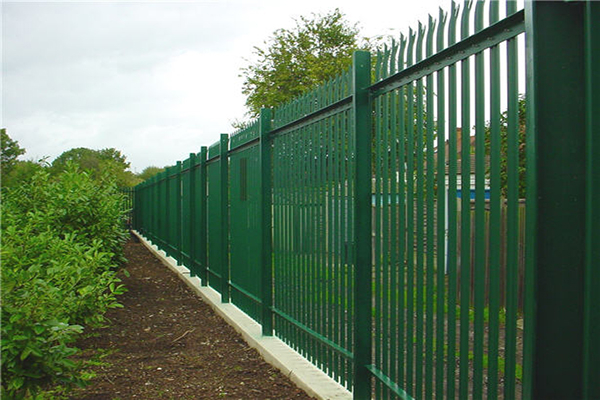

square post PALISADE FENCE       POLYESTER COATING PALISADE FENCE

Fence Panel Height: 1m-5m

Fence Width:2m-3m

D Pale Height: 1.0m-5.0m

D Pale Width: 65mm

D Thickness: 2.0mm-4mm

Top Point: Three Triple Point, Single Point,Round Point ETC.

Material: Hot and Cold Steel Roll Belt

Finished: Electric Galvanized, Hot Dipped Galvanized, Polyester Painting.

Polyester Painting Color: Any RAL Series Color ( Normal RAL6005-Dark Green,RAL9005-Black)

Angle Rail: 50mmX50mmXThickness:4mm-6mmXWidth:2.0m-2.75m

Post: I Beam Post: 100mmX55mmXHeight:1.5m-6m,150mmX75mmXHeight:3m-6m

Square Post:70mmX70mmX3mm,80mmX80mmX3mm

Material: I Beam or Square Steel Pipe

Finished: Electric Galvanized,Hot Dipped Galvanized, Polyester Painting

Hot Dipped Galvanized: 600gram/Square meter(85micron),meet ISO EN 1461

Polyester Painting Color: Any RAL Series Color ( Normal RAL6005-Dark Green,RAL9005-Black)

Fish Plate: On request Or Welded onto Post

Single Arm Or Double Arm: On Request

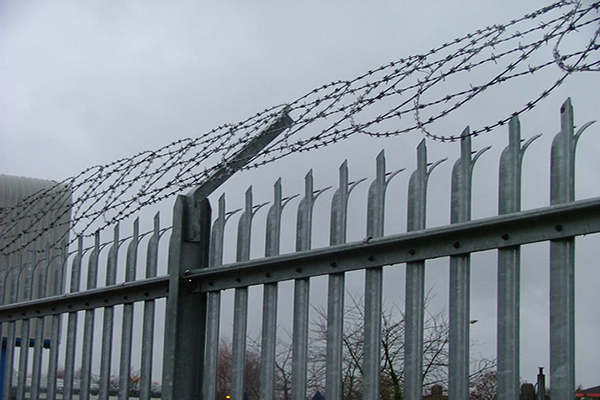

Tension Wire Or Barbed Wire: On Request

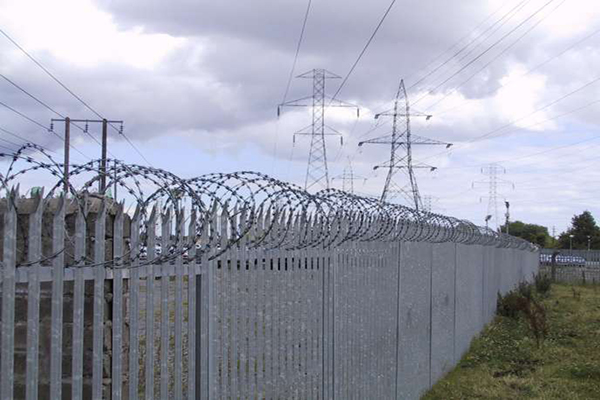

Concertina Razor Wire: On Request

Tension Wire: On Request

Tie Wire: On Request

Bolts & Nuts: According to Need M8X30mm and M12X30mm
